ZEBRA

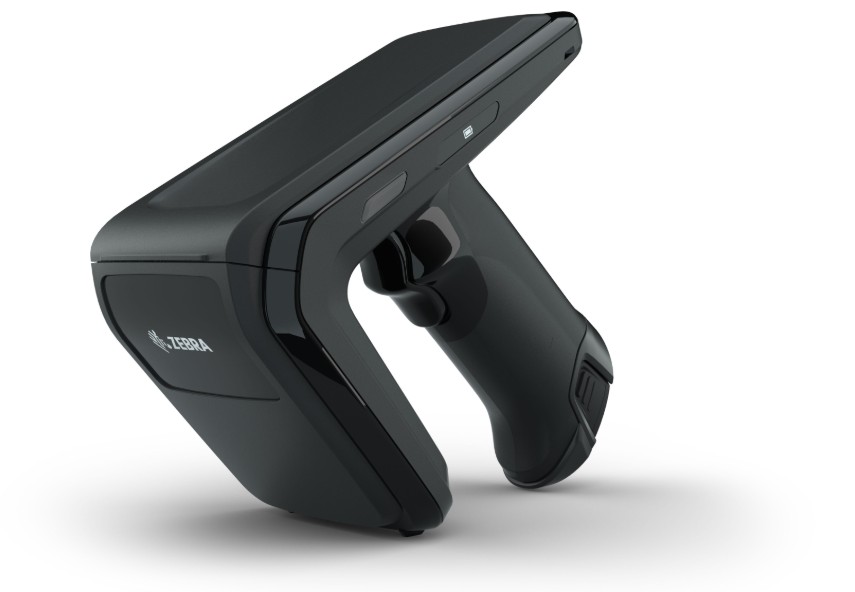

RFD40 UHF RFID 슬레드로 필요한 경쟁력과 효율성을 확보하십시오. 초당 1300개 이상의 태그를 판독하는 업계 최고의 성능과 향상된 인체 공학적 디자인및 더커진 배터리 용량으로 순환 실사 시간을 줄이십시오.
| Standards Supported | EPC Class 1 Gen 2; EPC Gen2 V2 |
| RFID Engine | Zebra Proprietary Radio Technology |
| Fastest Read Rate | 1300+ tags/sec |
| Nominal Read Range | ~19.7+ ft./ ~6+ m |
| Frequency Range and RF System Output |
US: 902-928MHz; 0 — 30 dBm (EIRP) EU: 865-868MHz; 0 — 30 dBm (EIRP) 916.3, 917.5, and 918.7 MHz; 0 30 dBm (EIRP) Japan: 916-921MHz (w LBT), 0 — 30 dBm (EIRP) |
| EMI/EMC | FCC Part 15 Subpart B Class B; ICES 003 Class B; EN 301 489-1; EN 301 489-3; EN 55035; EN 55032 Class B; EN 60601-1-2 |
| Electrical Safety | IEC 62368-1 (ed.2) |UL 62368-1, second edition, CAN/CSA-C22.2 No. 62368-1-14 |
| RF Exposure | EU: EN 50364, EN 62369-1, EN 50566, EN 62311; USA: FCC Part 2. 1093 OET Bulletin 65 Supplement ‘C’; Canada: RSS-102 |
| Host Connection | eConnex™ (Electric 8-pin Connection) USB-C Cable USB Cable Cup |
| Host Computer | Zebra mobile computers and tablets Windows-Based PCs |
| Dimensions | 5.94 in. H x 3.3 in. W x in. 6.5 in. L 15.1 cm H x 8.4 cm W x 16.65 cm L |
| Weight | ~19.1 oz./~541 grams (sled with battery) |
| Power | Quick-Release, PowerPrecision+ Li-Ion 7000 mAh battery |
| Drop Specification | Multiple 5 ft./1.5 m drops to concrete |
| Tumble Specification | 500 cycles (1000 drops, 1.6 ft./0.5 m) at room temperature |
| Sealing | IP54 |
