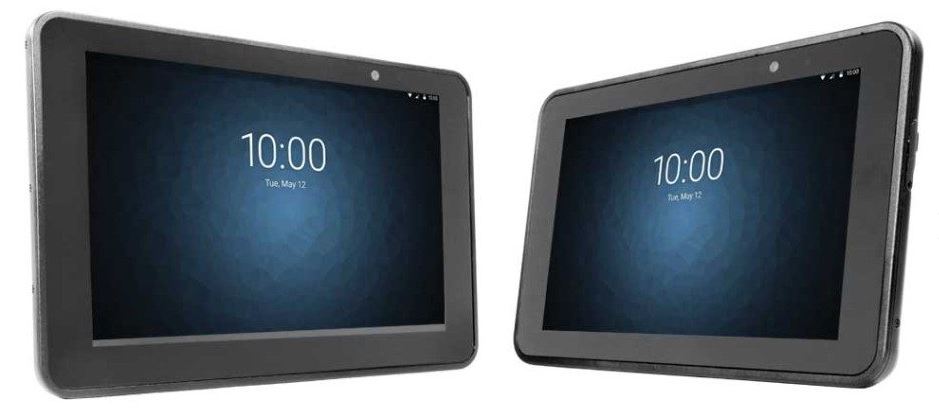

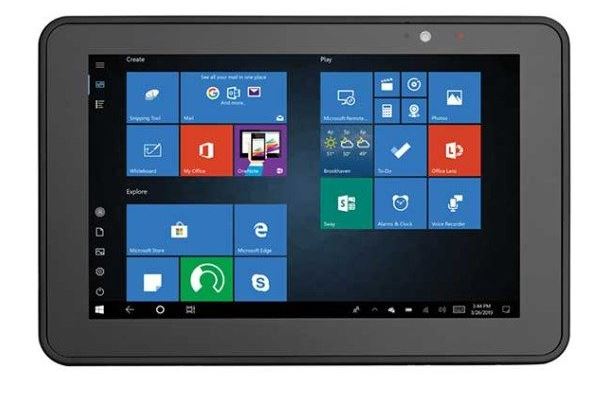

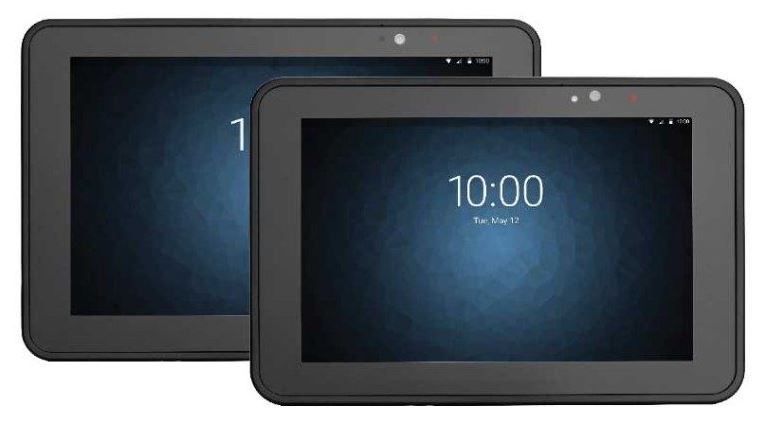

ET51/ET56 — 놀랍도록 견고한 내구성과 얇고 가벼운 디자인을 자랑하는 기업용 태블릿.


CPU Qualcomm SnapdragonTM 660 octa-core 2.2 GHz
Operating System Android 10; upgradeable through A11/ R³
Memory 4GB LPDDR4 SDRAM Discrete / 32GB MLC eMMC Flash; user accessible micro SDXC card slot (standard supports up to 2TB)
Sealing IP65
WiFi (WLAN) WLAN: 802.11 a/b/g/n/d/h/i/k/r/ac; IPv4; IPv6; dual band 2x2 MIMO for transmit and receive
Cellular (WWAN) (ET56 only) Global LTE (data only)
North America LTE (data only): AT&T and Verizon
Bluetooth (WPAN) Bluetooth v5.0 / 2.1+EDR Class 2 (Bluetooth LE)
GPS (ET56 only) GNSS supports GPS, Galileo and Glonass with LTO technology for Assisted-GPS without sacrificing autonomous operation
NFC P2P: ISO 18092; Reader/Writer: ISO 14443 –A-B, MIFARE, FeliCa®, ISO 15693, NFC Forum Tag Types 1 to 4; Card emulation: ISO 14443 –A-B-B’, MIFARE, FeliCa RF
Dimensions 8.4 in. tablet: 9 in. W x 5.9 in. H x 0.5 in. D
228 mm W x 150 mm H x 12.7 mm D
10.1 in. tablet: 10.6 in. W x 7.1 in. H x 0.5 in. D
269 mm W x 181 mm H x 12.7 mm D
Weight (Battery Included) ET51 8.4 in.: 1.12 lbs/514 g
ET56 8.4 in.: 1.15 lbs/527 g
ET51 10.1 in.: 1.60 lbs/745.5 g
Display 8.4 in./21.3 cm; 720 nits
10.1 in./25.7 cm; 540 nits
Supports up to 2560x1600
Corning Gorilla Glass; daylight viewable
Touch Panel Capacitive 10 point multi-touch
Keyboard Options Virtual; Bluetooth®; USB-C
Expansion Integrated connector to easily add accessories
Connectivity Docking connector (charge and data)
Rugged connector for use with rugged dock (charge and data)
USB-C side port (data or charging)
Notification LED flash; barcode decode;²; system and OS notification LED indicator; charge LED indicator
Audio Stereo speakers and dual front-facing microphones
Battery User Profile Ample power for a full shift; continuous operation is enabled with the secondary optional battery
Battery 8.4 in.: 6440 mAhr, 3.8V, rechargeable Li-Polymer; user replaceable (24.4 Whr)
10.1 in.: 9660 mAhr, 3.85V rechargeable Li- Polymer; user replaceable (37.1 Whr) Optional hot swappable 3400mAh , 7.2V (24.4Whr) secondary battery (equivalent to 3.6V @ 6800mAh)
USB-C charging: Supports USB-PD (Power Delivery) charging on USB-C connector up to 18W (9V and 12V modes) via Zebra’s power supply (PWRWUA5V12W0) and cable (CBL-TC2XUSBC-01)
Scanning Available through the expansion back accessory: SE4750 integrated advanced imager with hardware decoding
Rear Camera Image capture: 13MP auto-focus camera with user controllable LED flash, illumination and aiming; photographs, video, signatures and documents
Front Camera 5MP 1080p full HD optimized for video collaboration and low lighting conditions
Video 1080p (Full HD, 1920 x 1080), frame rate = 30fps
